Installing Ways:

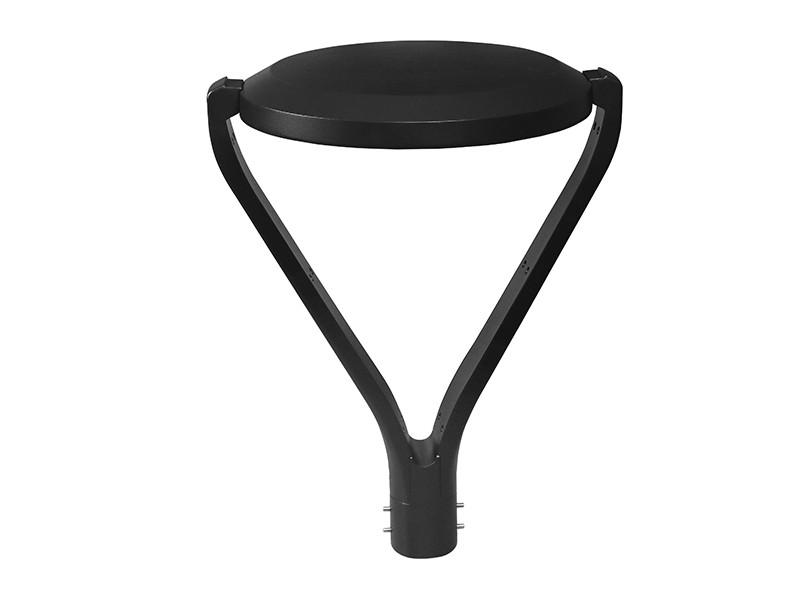

UB-09-90A:Horizontal only.
UB-09-90B:Suspension installation
Material:
Die casting Aluminum bodyUItra clear tempered glass

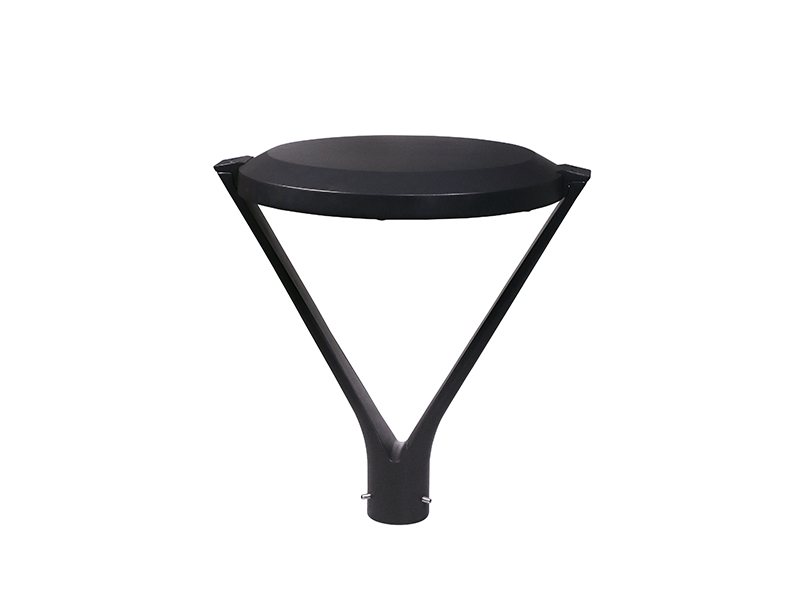

| Product Code | YAUB-09-90A | YAUB-09-90B | YAUB-09-90D |
| Input Wattage(W) | 30～120 30～120 30～120 | ||
| Number of Lenses(PCS) | 9 9 9 | ||
| Product Size(mm) | 545×465×715 465×465×197 535×465×558 | ||
| Packing Size(mm) | 550×520×245 550×520×245 570×570×215 | ||
| Net Weight (kgs) | 5.7 4.5 4.9 | ||
| Gross Weight (kgs) | 6.5 5.3 5.7 | ||
| Quantity of Packing(pcs) | 1 1 1 | ||
| Installation Height(m) | 4～8 4～8 4～8 | ||
| Installation Pipe Diameter | φ76mm φ76mm φ76mm | ||
| Adjustable Angle | 0°Adjustable | ||
| Materials | Housing:ADC12,Cover:Toughened Glass,Screws:304 stainless screws | ||
| Spray Colors | Grey,Black and others available on request | ||
| Led Brand | LUMILEDS,OSRAM,CREE(Optional) | ||
| Led Specifications | 3030,5050(Optional) | ||
| Optical Effect | 130～170 Im/w(Optional) | ||
| Color Temperature | 2700K,3000K,3500K,4000K,5000K,5700K,6500K(Optional) | ||
| Color Rendering Index | Ra≥70,Ra≥80,Ra≥90(Optional) | ||
| Optics | TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV(Optional) | ||
| Driver Brand | PHILIPS/OSRAM/TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS | ||
| Input Voltage | AC90～305V | ||
| Security Level | Classl /Classll /Class1/Class2(Optional) | ||
| Frequency Range | 50/60Hz | ||
| Power Factor | PF≥0.95 | ||
| Protection | Overcurrent /Short circuit /Over temperature | ||
| Dimming Mode | Time control/0-10V/Opticalcontrol /Microwaves/DALI (Optional) | ||
| Lightning Protection | 10KV/15KV/20KV(Optional) | ||
| Working Conditions Range | -40 to 45℃,20%to 90%RH | ||
| Warranty | 5/8 years(Optional) | ||
| Protection Level | IP66,GlasslK08/09/10(Optional),Lamp shell IK08 | ||
| Certifications | ENEC;CE;CB;IEC;RoHs;TUV;Lightning protection;LM-79;LM-80;IP66 | ||
