LED Street Lighting-ZHSL-18 Suppliers

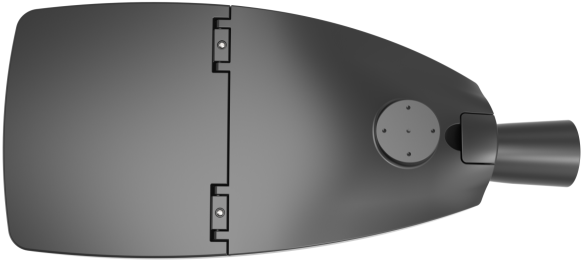

ZHSL-18

Installing Ways:Both Horizontal and Vertical available and adjustable angle-10°to 10°
Material:Die casting Aluminum body Ultra clear tempered glass and PC lens

0
Views: 134
ZHSL-18

Product Details

Product Code ZHSL-18-80 ZHSL-18-150
Input Wattage 80W 150W
Color Temperature 3000-6500K 3000-6500K
Luminous Flux 9200-10400lm  16500-19500lm
Input Voltage AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70
Temperature of Working Condition -40-50℃ -40-50℃
Humidity of Working Condition 20%-90%RH 20%-90%RH
LED Lifetime 50000h  50000h
Protection Grade IP66 IP66
Installation Pipe Diameter ⌀60mm ⌀60mm
Installation Height 6-10m 10-12m
Net Weight 6.0Kg 7.4Kg
Gross Weight 6.5Kg 8.0Kg
Packing Size(mm) 570×310×220 670×350×220
