Outdoor Street Light Fixtures 3000-6500K YASL-19-30 Glass

3+
Views: 2,328
Outdoor Street Light Fixtures 3000-6500K YASL-19-30 Glass

Product Details

LED Street Light YASL-19

lnstalling Ways:

Both Horizontal and Vertical available and adjustable angle-15°to+15°

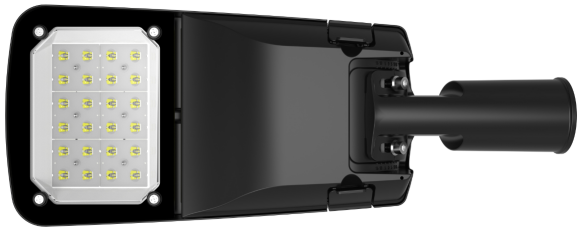

90 degree installation Front
Back Side



Product Specification



Product Code YASL-19-30
Input Wattage 50W
Color Temperature 2700~6500K
Luminous Flux 6500-7000lm
Input Voltage AC90~305V
Frequency Range 50/60Hz
Power Factor PF≥0.95
color rendering index Ra≥70
Temperature of Working Condition -40~50℃
Humidity of Working Condition 20%~90%RH
LED Lifetime 50000h
Protectin Grade IP66
Protection level IK08/09
Installation Pipe Diameter φ45/60mm
Installation Height 4-6m
Net Weight 3.1kgs
Gross Weight 3.5kgs
Packing Size(m m) 580*250*165



LED Street Light YASL-19

Product Description

This series is a high-performance street lighting available in three sizes.

The lunimaire is manufactured from high pressure die-casting aluminum.

It shall have a led efficiency up to 130 lm/w and will be capable of producing.

Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.



IP66 CE ROHS







Photometric



DH-T1 DH-T3-M DH-T4-M DY-T3-M GY-T2-M01 GX-T2-M GX-T4-L HX-T2-S
DH-T2-L DH-T3-MA DH-T5-M GY-T1-M GY-T3-M01 GX-T3-M HY-T2-M HX-T2-M
DH-T2-M DH-T3-MB DY-T2-M GY-T2-M GX-T2-S GX-T4-M HY-T3-M HX-T3-M



Product Size



Product Code YASL-19-30M
L(mm) 459
W(mm) 186
H(mm) 119
