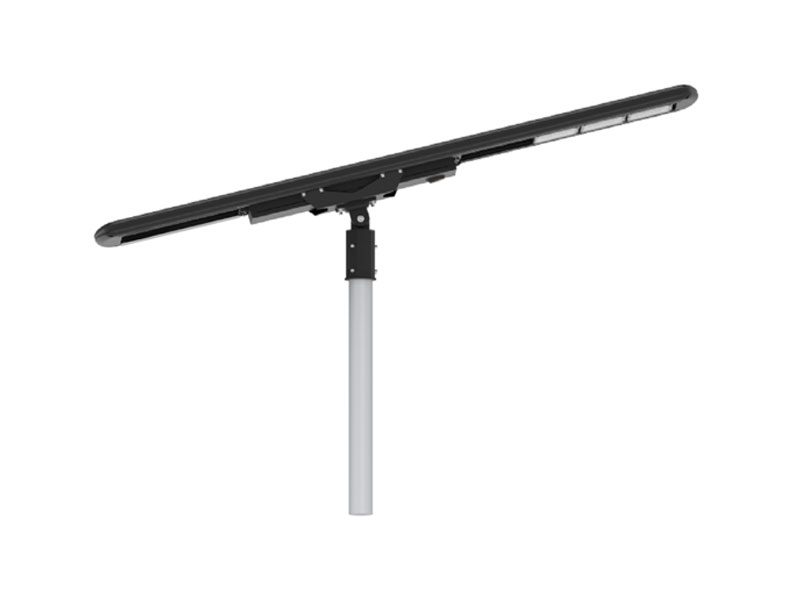

Product Features：
Appearance patent new product
PMMA Lens module
Multiple optical lenses for road lighting;
Aviation gold-plated plug, efficient transmission
Large angle adjustment elbow, meeting installation requirements
Tool-free disassembly of the battery box for easy maintenance
Electrical components IP66
| Product Code | YASL-36-440 | YASL-36-430 | ||||
| Nominal power | 50W | 60W | 70W | 80W | 100W | 120W |
| Number of lenses（PCS） | 1 | 2 | 2 | 3 | 3 | 4 |
| Optics | DK-270X75-28H1 TYPE-I,TYPE-II,TYPE-III,TYPE-IV | |||||
| Induction distance | 8～12m | |||||
| Quantity5050 | 28 PCS | 56 PCS | 84 PCS | 84 PCS | 84 PCS | 112 PCS |
| Light flux（lm） | 9000～11000 | 10800～13200 | 12600～15400 | 14400～17600 | 18000～22000 | 21600～26400 |
| Battery specifications | 30AH/12.8 | 45AH/12.8 | 60AH/12.8 | 75AH/12.8 | 45AH/25.6 | 60AH/25.6 |
| Battery capacity | 384 WH | 576 WH | 768 WH | 960 WH | 1152 WH | 1536 WH |
| Solar panel power | 60W/16V | 72W/16V | 96W/16V | 125W/16V | 210W/36V | 255W/36V |
| Charging time | 6.4 H | 8 H | 8 H | 8 H | 5.5 H | 6 H |
| Discharge time | 7.7 H | 9.6 H | 11 H | 12 H | 11.5 H | 12.8 H |
| ntelligent discharge time | 2.1days/25H | 2.6days/31H | 2.9days/35H | 3.2days/38H | 3.1days/37H | 3.4days/41H |
| Product dimensions | 899*454*124 | 1059*454*124 | 1339*454*124 | 1694*454*124 | 1459*811*151 | 1744*811*151 |
| Packing Size | 1000*550*240 | 1160*550*240 | 1440*550*240 | 1800*550*240 | 1580*920*260 | 1860*920*260 |
| Quantity of packing | 1 | 1 | 1 | 1 | 1 | 1 |
| Net Weight | 14 kgs | 19 kgs | 27 kgs | 34 kgs | 45 kgs | 60 kgs |
| Gross Weight | ||||||
| Installation Height | 5～6 M | 5～6 M | 6～8 M | 6～8 M | 8～10 M | 8～10 M |
| Installation Pipe Diameter | φ50/60mm | |||||
| adjustable angle | ＋15°Adjustable | |||||
| Materials | Housing:ADC12；frame：6063 aluminum alloy；lens:PMMA；Screws:304stainless screws | |||||
| Appearance color | frame：Oxidized black/Metallic color；Housing：Black sand grain | |||||
| Led brand | LUMILEDS/OSRAM/CREE/XUYU(Optional) | |||||
| Optical effect | 180～220 lm/w(Optional) | |||||
| Color Temperature | 2700K,3000K,3500K,4000K,5000K,5700K,6500K(Optional)(Reference：Energy Star) | |||||
| color rendering index | Ra≥70；Ra≥80；Ra≥90(Optional) | |||||
| Optics | TYPEI,TYPEII,TYPEIII,TYPEIV(Optional) | |||||
| Battery type | Lithium iron phosphate 32140 | |||||
| Dimming mode | MPPT/PWM-WB/IR；Internet of Things remote control RS485 Interface and TTL Interface | |||||
| Solar panels | Mono-Crystalline Silicon solar panel | |||||
| Working conditions Range | -30 to 45℃,20% to 90%RH | |||||
| Warranty | 3/5year(Optional) | |||||
| Protection level | IP66;IK08； | |||||
| Certifications | CE;RoHs;FCC | |||||
