LED Street Lighting-LED Street Light YASL-30 Suppliers

LED Street Light YASL-30

0
Views: 63
LED Street Light  YASL-30

Product Details

LED Solar Street Light YASL 30

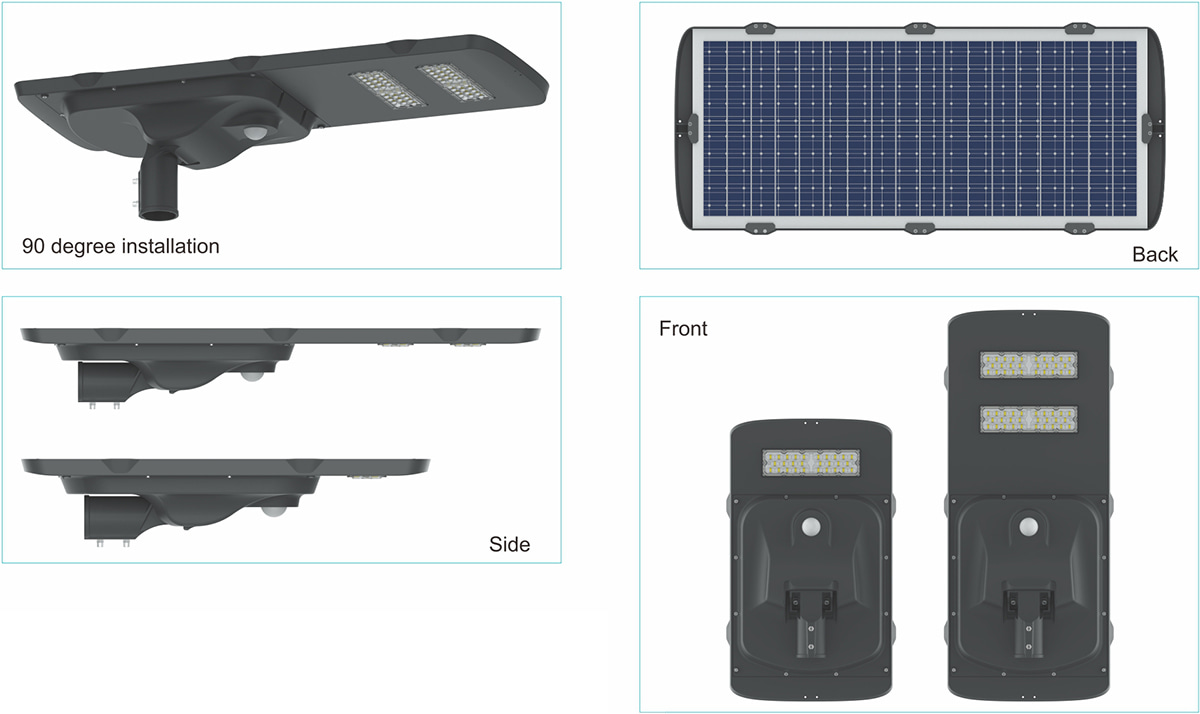

Installing Ways:Both Horizontal and Vertical available and adjustable angle-15° to 15°

Material:Die casting Aluminum body and PC lens



Product Specification

Product Code

YASL-30-40

YASL-30-80

Nominal Power

30W

40W

50W

60W

80W

Quantity (5050)

18 PCS

18 PCS

28 PCS

28 PCS

36 PCS

Battery Capacity

12.8V/18AH

12.8V/24AH

12.8V/30AH

12.8V/36AH

12.8V/42AH

Solar Panel Power

18V/40W

18V/50W

18V/60W

18V/80W

18V/100W

Charging Time

6H

6H

6.5H

6H

5.5H

Number of Lenses (PCS)

1 module

1 module

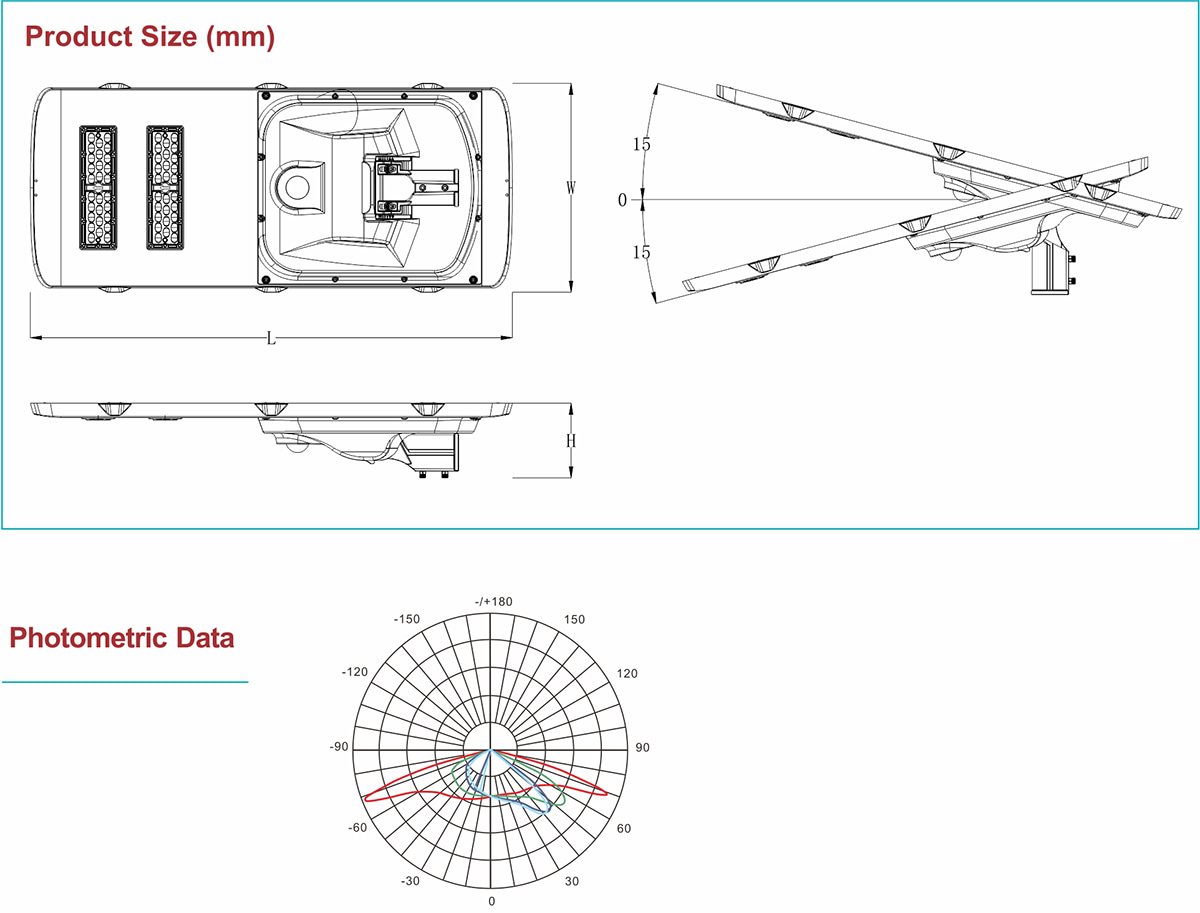

Product Size (mm)

780×468×153

1080×468×153

Packing Size (mm)

815×500×180

1120×500×180

Net Weight (kgs)

11.2

15.8

Gross Weight (kgs)

12.6

17.6

Quantity of Packing (PCS)

1

1

Installation Height (m)

4~8

6~10

Installation Pipe Diameter

Φ60mm

Φ60mm

Adjustable Angle

±15°Adjustable

Materials

Housing:Aluminium, Cover:Toughened Glass, Screws:304 stainless screws

Spray Colors

Double Grey, Sandy Black, Matt Silver

Led Brand

LUMILEDS, OSRAM, CREE (Optional)

Led Specifications

3030, 5050 (Optional)

Optical Effect

130~190lm/w (Optional)

Color Temperature

2700K, 3000K, 3500K, 4000K,5000K, 5700K, 6500K (Optional) (Reference: Energy Star)

Color Rendering Index

Ra>70, Ra>80, Ra>90 (Optional)

Optics

See Photometric Data

Discharge Time

4-5 days

Frequency Range

50/60HZ

Induction Distance

12m

Battery Type

Lithium iron phosphate

Dimming Mode

Microwave induction / Infrared sensing (Optional)

Solar Panels

Mono-Crystalline Silicon solar panel

Working Conditions Range

-30 to 45℃, 20% to 90% RH

Warranty

3/5 years (Optional)

Protection Level

IP65, IK08

Certifications

CE; RoHs; TUV; LM-79; LM-80; IP66



LED Solar Street Light YASL30

Product Description

This series is a high-performance street lighting available in two sizes.

The luminaire is manufactured from high pressure die-casting aluminum.

It shall have a led efficiency up to 190 Im/w and will be capable of producing up to 15200 luminaire lumens at 4000K finished in Grey or black as standard.

IP66 CE ROHS
