LED Street Light YASL-26

0
Views: 908

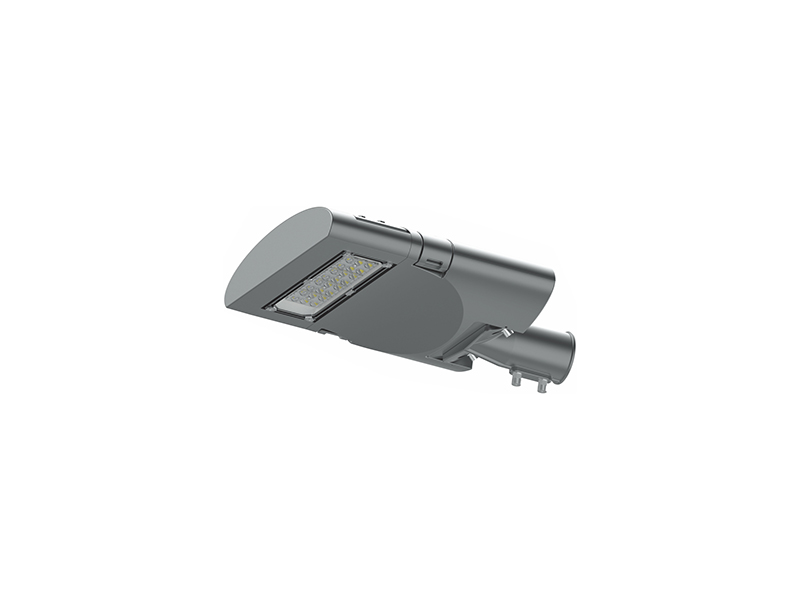

LED Street Light  YASL-26

Product Details

LED Street Light YASL-26

Installing Ways:Both Horizontal and Vertical available and adjustable angle -15°to 15°

Material:Die casting aluminium and extrusion aluminium housing. We have both module with tempered glass and module with PC lens both.

Product Specification

Product Code

YASL-26-50

YASL-26-100

YASL-26-150

YASL-26-200

YASL-26-250

YASL-26-300 1

Input Wattage (W)

30~60

80~120

120~180

160~240

200~300

240~360

Number of Lenses (PCS)

4

8

12

16

20

24

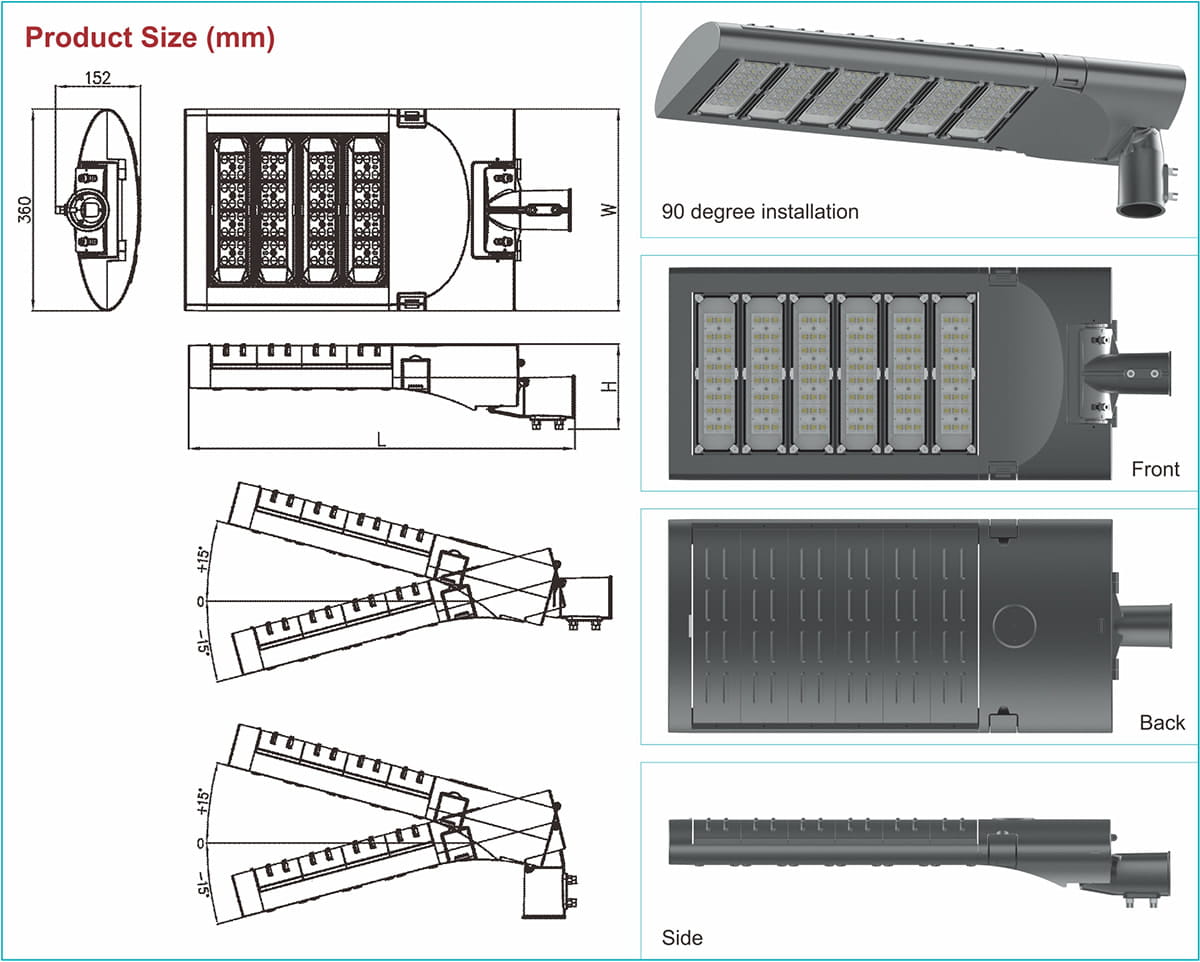

Product Size (mm)

449×360×152

529×360×152

609×360×152

689×360×152

769×360×152

849×360×152

Packing Size (mm)

460×370×150

540×70×150

620×370×150

700×370×150

780×370×150

860×370×150

Net Weight (kgs)

3.6

4.1

4.7

5.3

5.9

6.6

Gross Weight (kgs)

4.1

4.7

5.3

5.9

6.6

7.2

Quantity of Packing (PCS)

1

1

1

1

1

1

Installation Height (m)

3~6

4~8

8~12

8~12

12~14

8~14

Installation Pipe Diameter

Φ48/60mm

Φ48/60mm

Φ48/60mm

Φ48/60mm

Φ48/60mm

Φ48/60mm

Adjustable Angle

±15°Adjustable

Materials

Housing:Aluminium, Cover:Toughened Glass, Screws:304 stainless screws

Spray Colors

Double Grey, Sandy Black, Matt Silver

Led Brand

LUMILEDS, OSRAM, CREE (Optional)

Led Specifications

3030, 5050 (Optional)

Optical Effect

130~180lm/w (Optional)

Color Temperature

2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K (Optional) (Reference: Energy Star)

Color Rendering Index

Ra>70, Ra>80, Ra>90 (Optional)

Optics

TYPEI, TYPEII, TYPEIII, TYPEV, TYPEIV (Optional)

Driver Brand

PHILIPS / OSRAM / TRIDONIC / MEAN WELL / SOSEN / INVENTRONICS

Input Voltage

AC90~305V

Security Level

Classl / Classll / Class1 / Class2 (Optional)

Frequency Range

50/60Hz

Power Factor

PF>0.95

Protection

Overcurrent / Short circuit / Over temperature

Dimming Mode

Time control / 0-10V / Opticalcontrol / Microwaves / DALI (Optional)

Lightning Protection

10KV /15KV / 20KV (Optional)

Working Conditions Range

-30 to 45℃, 20% to 90% RH

Warranty

5/8 years (Optional)

Protection Level

IP66, GlasslK08/09/10 (Optional), Lamp shell IK09

Certifications

ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66

LED Street Light YASL-26

Product Description

The body, top and bracket is made from die casting, the middle housing is made from extrusion aluminium.

The middle housing could be cutted based on multi module that you used.

IP66 CE ROHS



Light Distribution (For details, please refer to the summary table of light distribution curves on page 78,79,80.)



YASL-26

IES Type Light Distribution Cure

DH-T1

DH-T2-L

DH-T2-M

DH-T2-MB

DH-T3-M

DH-T3-MA

DH-T3-MB

DH-T4-M

DH-T5-M

DY-T2-M

DY-T3-M

GY-T1-M

GY-T2-S

GY-T2-M

GY-T3-M

GY-T2-M01

GY-T3-M01

GX-T2-S

GX-T2-M

GX-T3-M

GX-T4-M

GX-T4-L

GX-T5

GJ-T2-M

GJ-T3-M

GJ-T4-M

HY-T2-S

HY-T3-M

HX-T2-S

HX-T2-M

HX-T3-M

HX-T4-M
