Material:
Die casting body.
Gear box available.
Tempered glass cover and PC lens.
| Product Code | YAFL-FR03-30 | YAFL-FR03-50 | YAFL-FR03-100 | YAFL-FR03-200 | YAFL-FR03-400 | YAFL-FR03-800 | |
| Input Wattage(W) | 20～30 | 40～80 | 80～150 | 150～250 | 300～500 | 600～800 | |
| Number of Lenses(PCS) | 2 | 4 | 9 | 16 | 36 | 64 | |

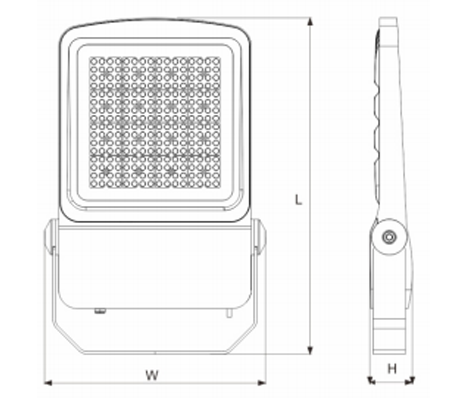

| Product Size(mm) | 230×270×50 | 320×224×50 | 422×292×62 | 520×342×65 | 620×450×84 | 779×594×85 | |
| Packing Size(mm) | 497×310×305 | 461×375×255 | 475×410×335 | 565×395×233 | 700×515×155 | 840×640×165 | |
| Net Weight (kgs) | 17.1 | 15 | 18.4 | 13.3 | 13.4 | 22.55 | |
| Gross Weight(kgs) | 18.3 | 17 | 19.4 | 15 | 14.4 | 24 | |
| Quantity of Packing(PCS) | 10 | 6 | 4 | 2 | 1 | 1 | |
| Materials | Housing:ADC12,Cover:Toughened Glass,Screws | 304 stainless screws | |||||
| Spray Colors | Grey,Black and others available on request | ||||||
| Led Brand | LUMILEDS,OSRAM,CREE(Optional) | ||||||
| Led Specifications | 3030,5050(Optional) | ||||||
| Optical Effect | 130～190 Im/w(Optional) | ||||||
| Color Temperature | 2700K,3000K,3500K,4000K,5000K,5700K,6500K (Optional) | ||||||
| Color Rendering Index | Ra≥70,Ra≥80,Ra≥90(Optional) | ||||||
| Optics | 30°,60°,90°and other | ||||||
| Driver Brand | PHILIPS/OSRAM /TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS | ||||||
| Input Voltage | AC90～305V | ||||||
| Security Level | Classl/Classll /Class1/Class2(Optional) | ||||||
| Frequency Range | 50/60Hz | ||||||
| Power Factor | PF≥0.95 | ||||||
| Protection | Overcurrent /Short circuit /Over temperature | ||||||
| Dimming Mode | Time control/0-10V/Opticalcontrol /Microwaves/DALI (Optional) | ||||||
| Lightning Protection | 10KV/15KV /20KV(Optional) | ||||||
| Working Conditions Range | -40 to 45℃,20%to 90%RH | ||||||
| Warranty | 5/8 years(Optional) | ||||||
| Protection Level | IP66,IK08 | ||||||
| Certifications | CE;RoHs;Lightning protection;LM-79;LM-80;IP66 | ||||||
| YAFL-FR03 | IES Type Light Distribution Cure | |||||
| GD-30 | GD-60 | GD-90 | GX-50 | GJ-P45 | GJ-90 | |
| GY-T1-M | GY-T2-S | GY-T2-M | GY-T3-M | GY-T2-M01 | GY-T3-M01 | |
| GX-T2-S | GX-T2-M | GX-T3-M | GX-T4-M | GX-T4-L | GX-T5 | |
| GJ-T2-M | GJ-T3-M | GJ-T4-M | ||||
