Material:
Die casting body.
Gear box available.
Tempered glass cover and PC lens.
| Product Code | YAFL-F30-100 | YAFL-F30-200 | YAFL-F30-300 | YAFL-F30-400 |
| Input Wattage(W) | 50～150 | 150～250 | 200~320 | 300~500 |
| Number of Lenses(PCS) | 9 | 16 | 25 | 36 |

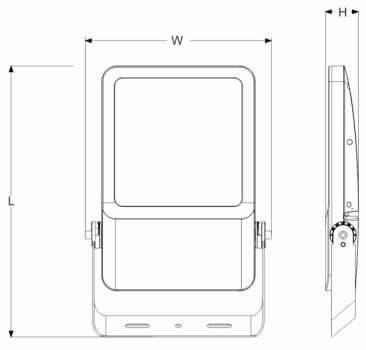

| Product Size(mm) | 436.5×301×61.6 | 510.9×350.4×61.9 | 639.5×414.1×69.1 | 697.4×469×75.4 |
| Packing Size(mm) | 485×350×110 | 565×400×110 | 670×460×110 | 740×520×120 |
| Net Weight (kgs) | 2.9 | 4.7 | 6.3 | 8.6 |
| Gross Weight (kgs) | 3.4 | 5.3 | 7.0 | 9.4 |
| Quantity of Packing(PCS) | 1 | 1 | 1 | 1 |
| Materials | Housing:ADC12,Cover | Toughened Glass,Screws | 304 stainless screws | |
| Spray Colors | Grey,Black and others available on request | |||
| Led Brand | LUMILEDS,OSRAM,CREE(Optional) | |||
| Led Specifications | 3030,5050(Optional) | |||
| Optical Effect | 130～190 Im/w(Optional) | |||
| Color Temperature | 2700K,3000K,3500K,4000K,5000K,5700K,6500K(Optional) | |||
| Color Rendering Index | Ra≥70,Ra≥80,Ra≥90(Optional) | |||
| Optics | 30°,60°,90°and other | |||
| Driver Brand | PHILIPS/OSRAM/TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS | |||
| Input Voltage | AC90～305V | |||
| Security Level | Classl/Classll /Class1/Class2(Optional) | |||
| Frequency Range | 50/60Hz | |||
| Power Factor | PF≥0.95 | |||
| Protection | Overcurrent /Short circuit/Over temperature | |||
| Dimming Mode | Time control/0-10V/Opticalcontrol/Microwaves/DALI (Optional) | |||
| Lightning Protection | 10KV/15KV/20KV (Optional) | |||
| Working Conditions Range | -40 to 45℃,20%to 90%RH | |||
| Warranty | 5/8 years(Optional) | |||
| Protection Level | IP66,IK08 | |||
| Cerifications | CE;RoHs;Lightning protection;LM-79;LM-80;IP66 | |||
| YAFL-F30 | IES Type Light Distribution Cure | |||||
| GD-30 | GD-60 | GD-90 | GX-50 | GJ-P45 | GJ-90 | |
| GY-T1-M | GY-T2-S | GY-T2-M | GY-T3-M | GY-T2-M01 | GY-T3-M01 | |
| GX-T2-S | GX-T2-M | GX-T3-M | GX-T4-M | GX-T4-L | GX-T5 | |
| GJ-T2-M | GJ-T3-M | GJ-T4-M | ||||
